UNIVERSAL

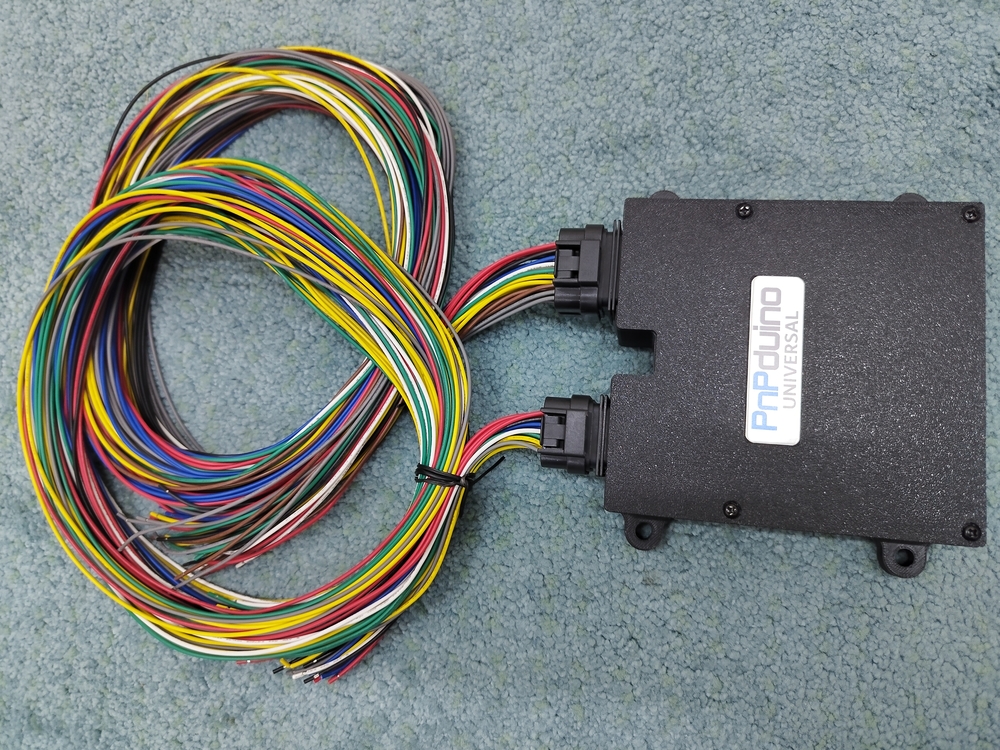

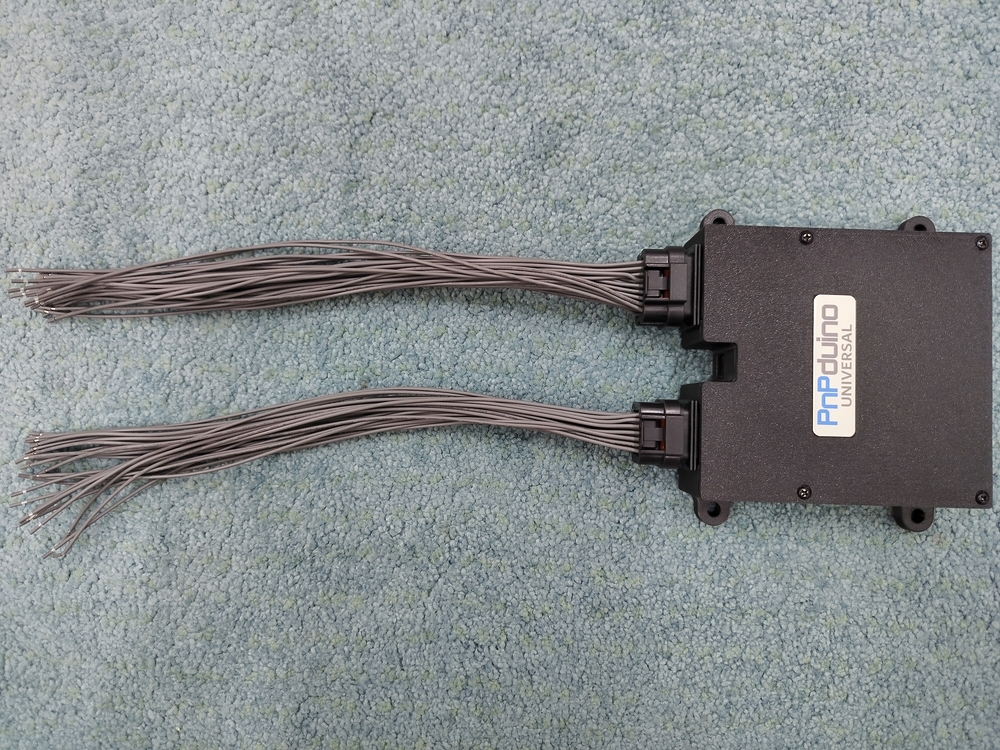

This PnPduino Universal is a Wire-in ECU that uses AMP SUPERSEAL 1.0 34 Pins (3 Slots) for the Inputs and 26 Pins (3 Slots) for the Outputs. This ECU is customizable depending on the engine you are installing it to. Accessories that can be added are 4 Bar Internal MAP sensor, Bluetooth, JDM VR Conditioner, Idle Stepper Motor Driver and SLC Wideband.

• Low and High Impedance aftermarket injectors can be used.
• The ECU case is 3D printed from either ASA or ABS which can withstand summer temperatures up to 80C. This ECU case is NOT waterproof. Install this ECU inside the car.
• Total of additional 7 Analog Spare Inputs and 2 Hall Sensor Inputs are available.

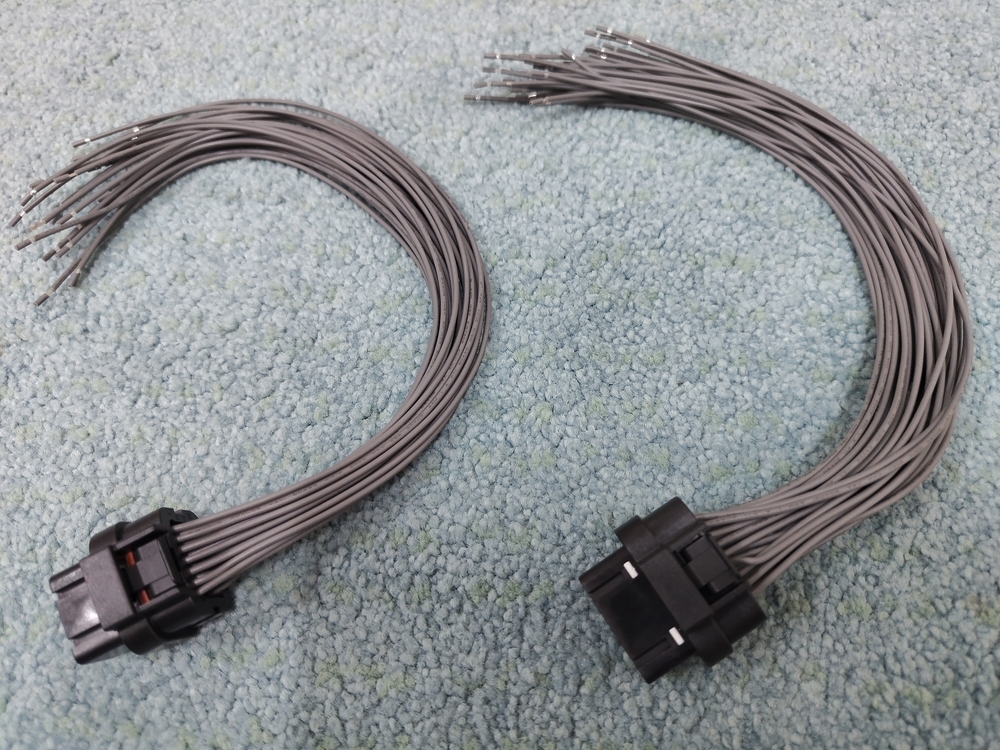

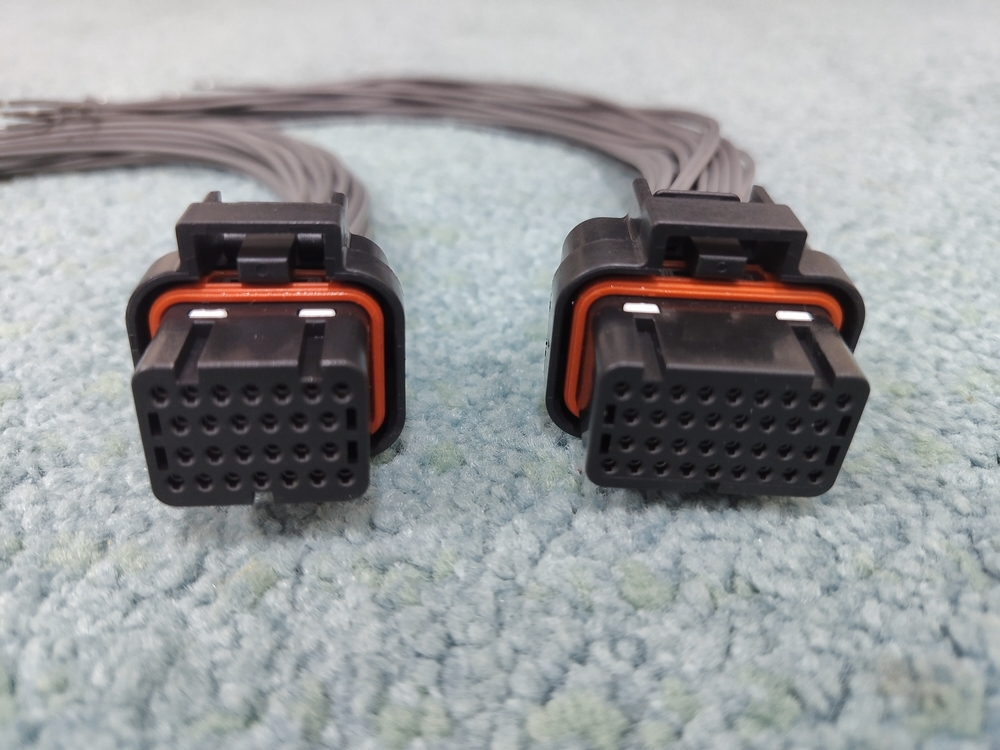

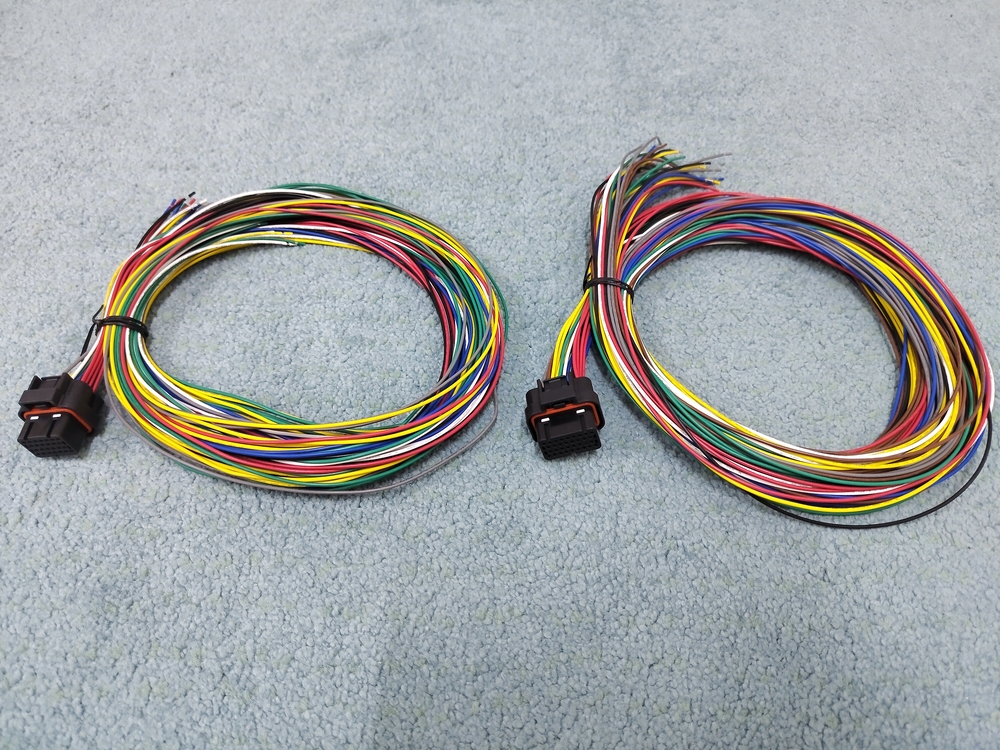

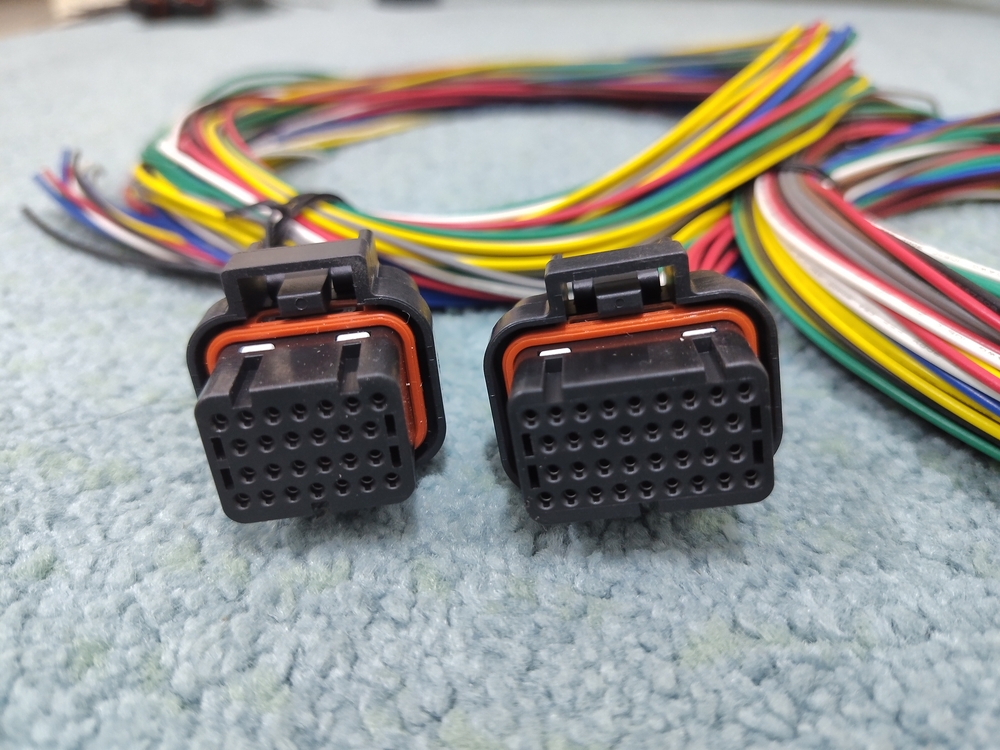

• The 34 and 26 Pin Female AMP SUPERSEAL 1.0 Connectors and terminal pins are included.
• Can be used as a Standalone or Piggyback ECU

The latest official firmware is installed at the time of purchase. Visit the Documentation Page to check the Pinouts and how to communicate with Tunerstudio.

ECU Features:

• Flex Fuel support for ethanol fuel (E85)
• Bluetooth connectivity to aftermarket dash or Android Tablet/Laptop
• Coil on Plug ready
• Switched Dual Maps
• Launch Control/Flat Foot Shifting
• Closed Loop Boost Control
• Water Methanol Injection
• Boost by Gear

Disclaimer. Speeduino is open source and owned/maintained by Josh Stewart. It is constantly growing and features are added in future updates. For off road use only.
